NAME:Flanges & Blinds
 MATERIAL:A105,A694 F42 F52 F56 F60 F65 F70 F80 A350 LF2 LF5 LF9 LF11


 SIZE:1/2"-48",DN15-DN1200
 PRESSURE:
Class 150,300,600,900,1500,2500


 STANDARDS:
MSS SP-44,ANSI B16.5,JIS B2220, ANSI B16.47, ANSI B16.48, AWWA C207, BS 4504, HG 20592

USE: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.



PRODUCT DRAWING PRODUCT CONSTRUCTION
PRODUCT DRAWING PRODUCT CONSTRUCTION
PRODUCT DRAWING PRODUCT CONSTRUCTION
PRODUCT DRAWING PRODUCT CONSTRUCTION
PRODUCT DRAWING PRODUCT CONSTRUCTION

PRODUCT DRAWING PRODUCT CONSTRUCTION







WEIGHT

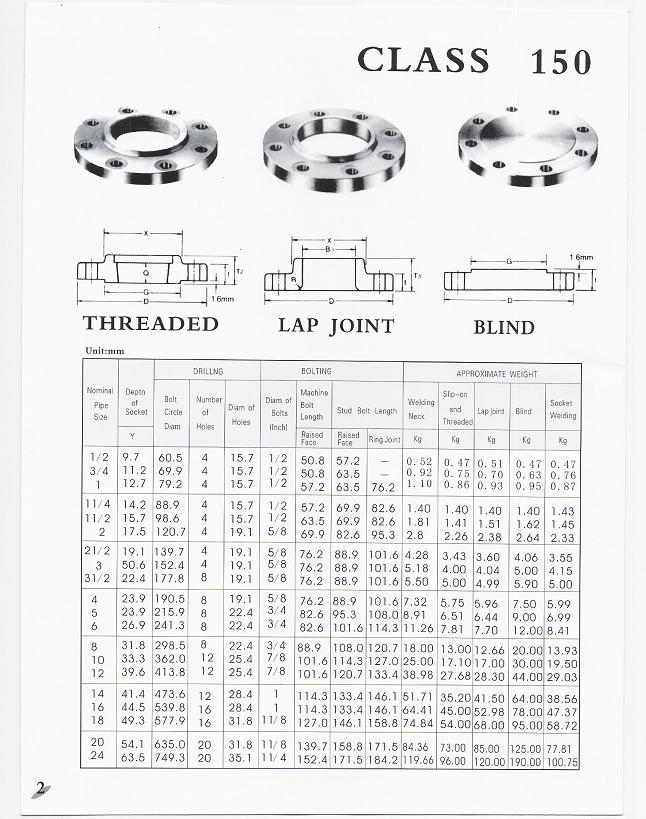

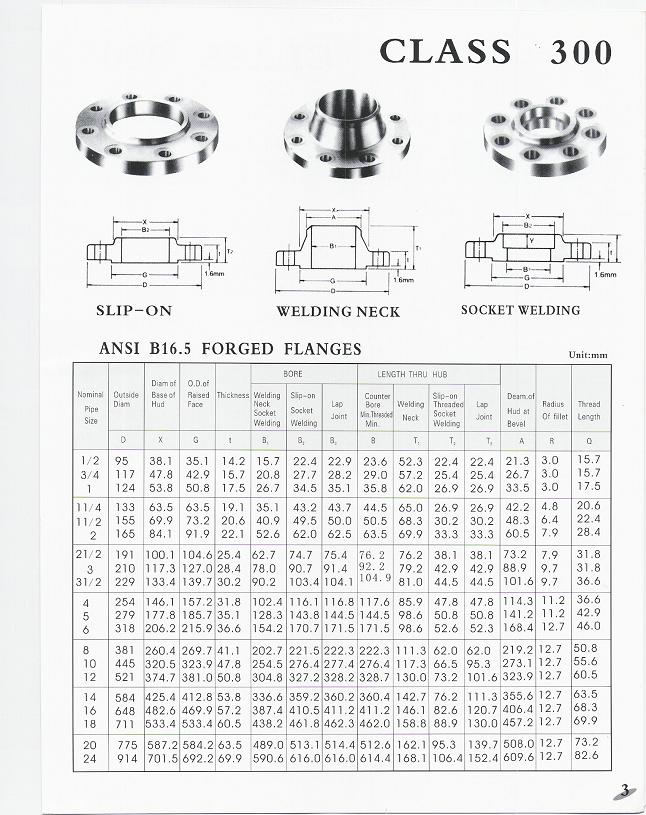

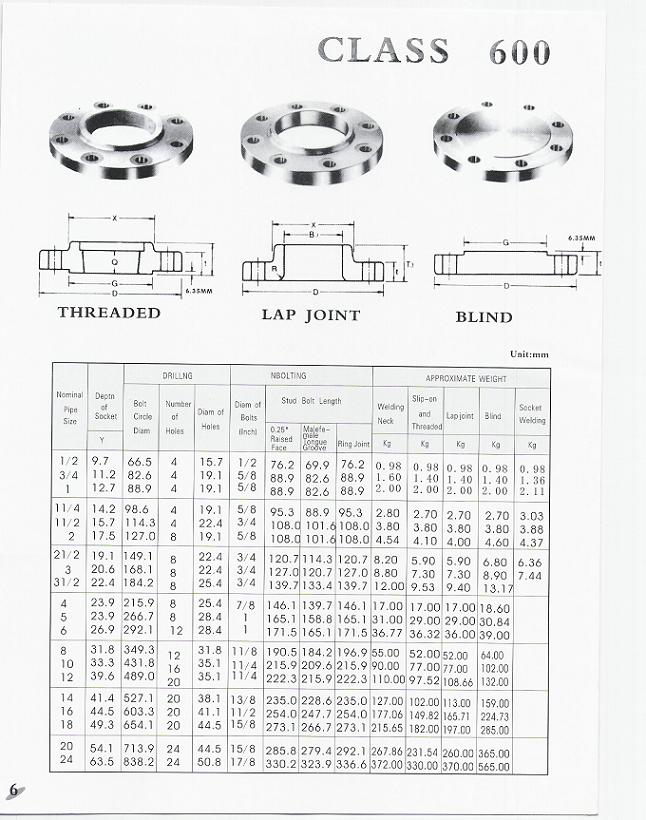

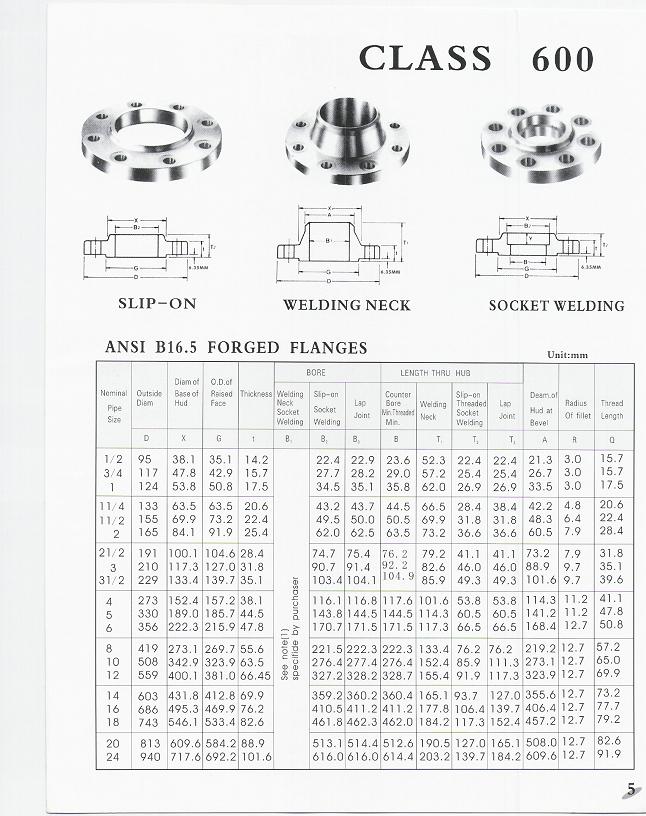

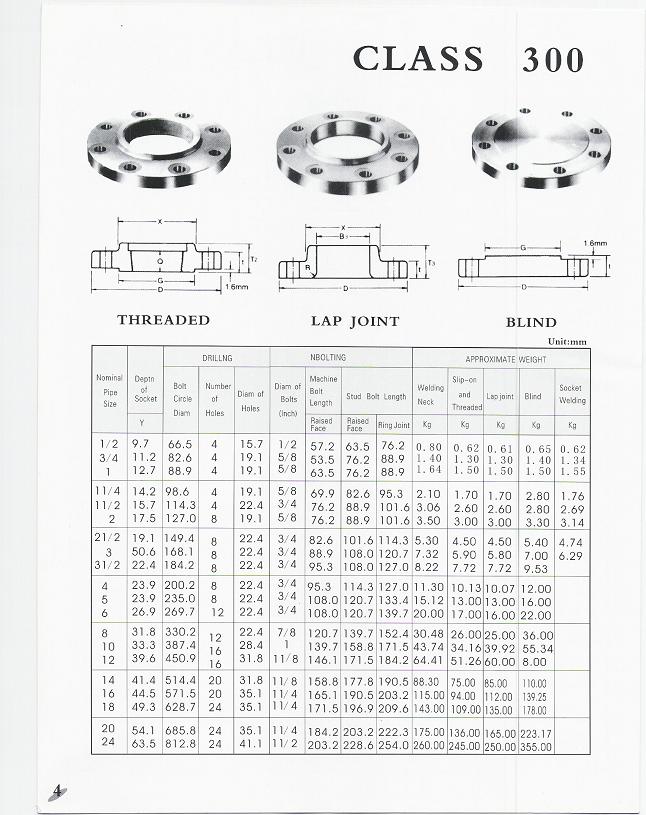

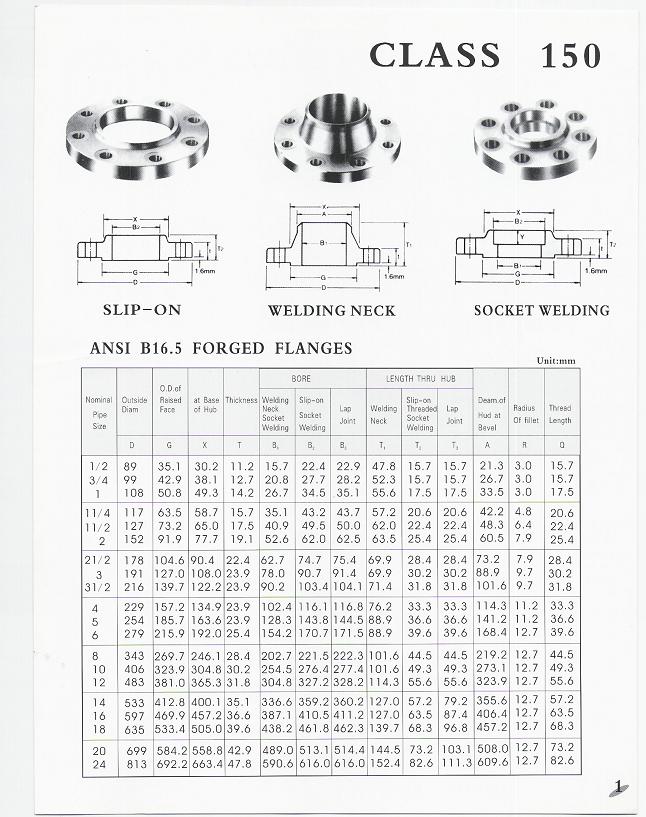

ANSI B16.5

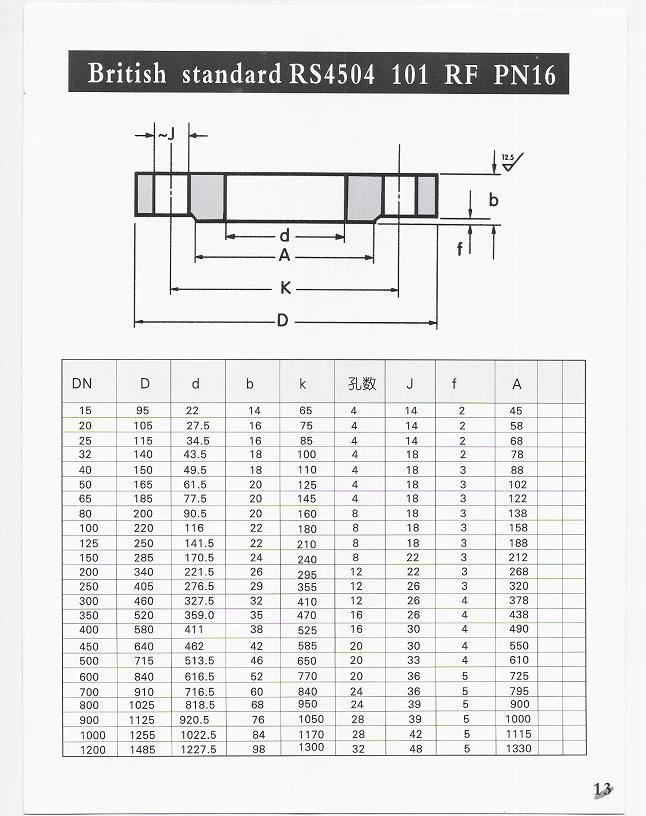

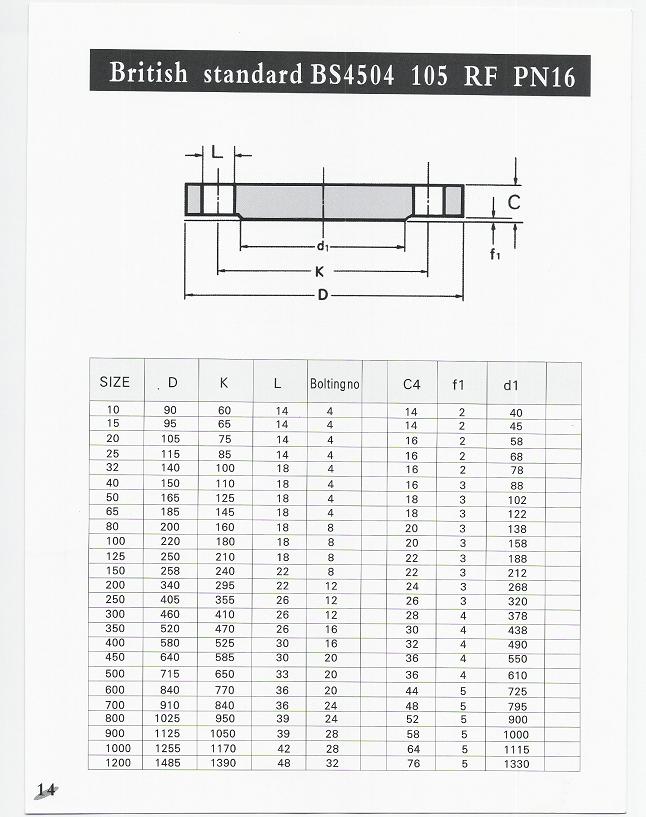

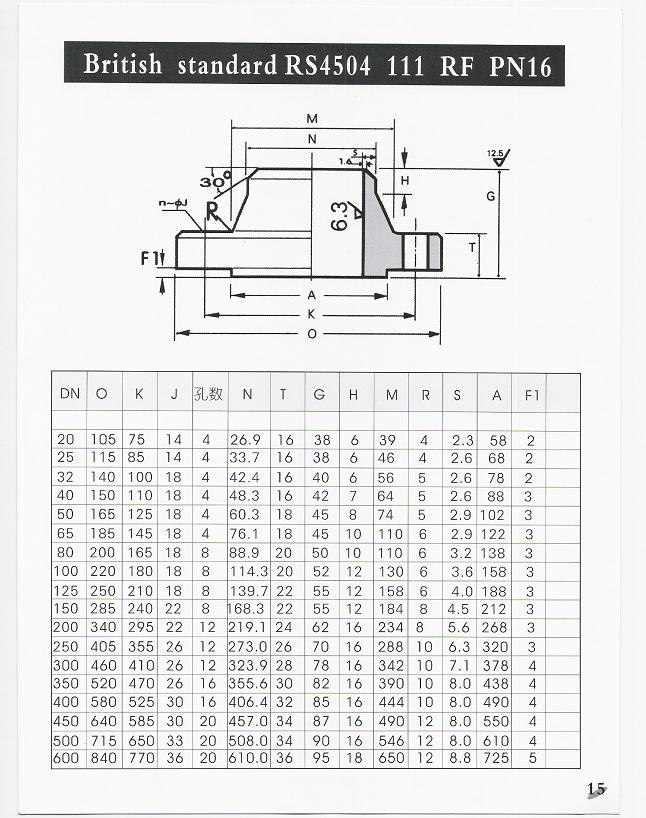

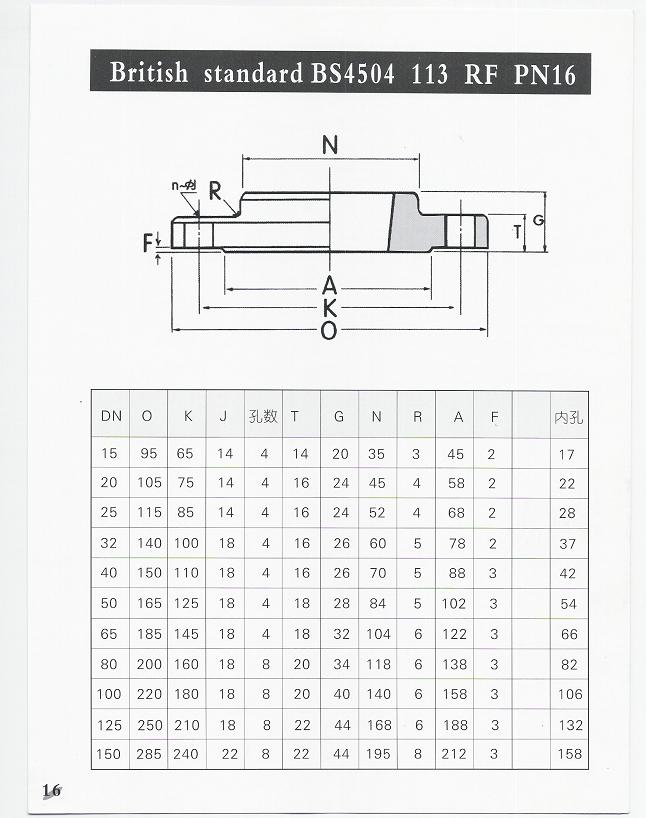

BS4504-3.1(89)

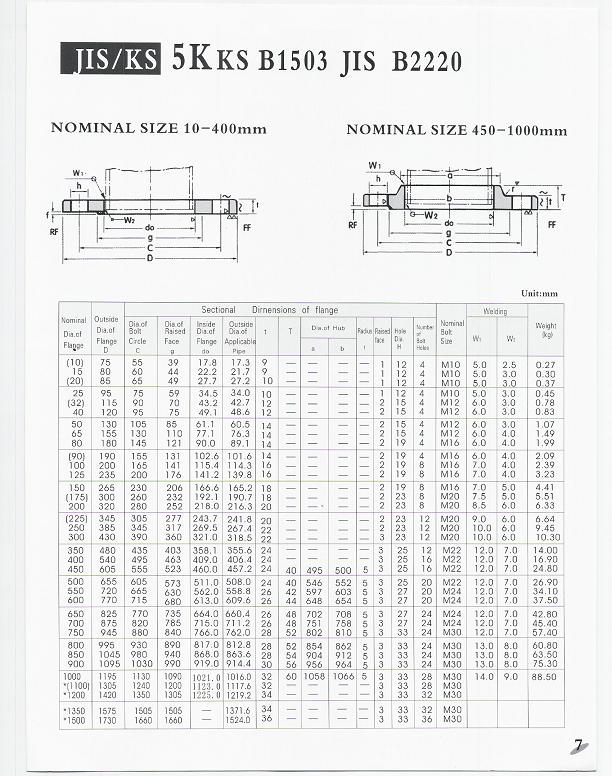

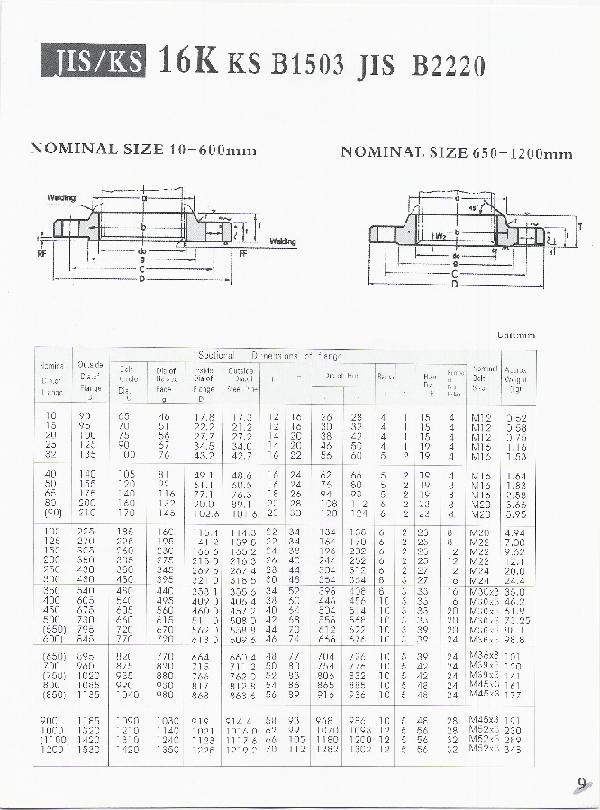

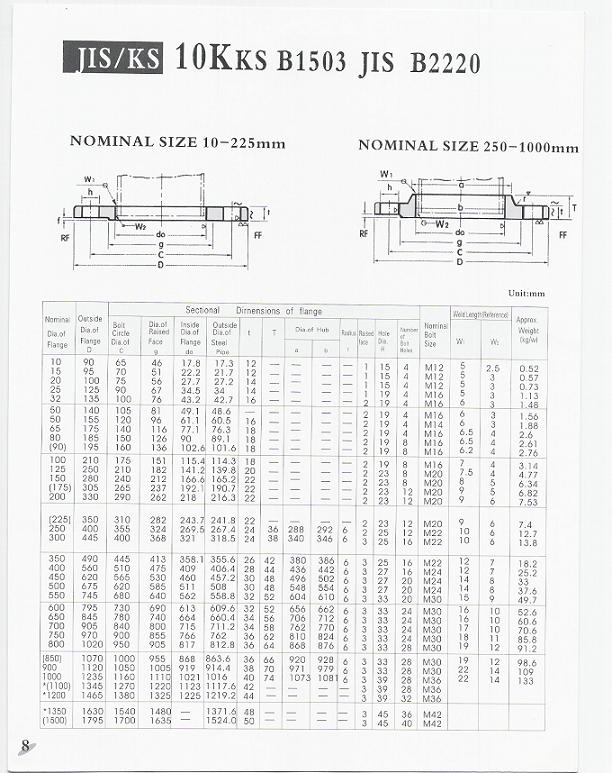

JIS B2220









MSS SP 44

Steel Pipeline Flanges





HG 20592

钢中国化工部 钢制管法兰,垫片,紧固件





AWWA C207

Steel Pipe Flanges for Waterworks Service





ASME B16.47

ASME B16.47 Ser. A, Ser. B INDUSTRY STANDARD Flanges





ASME B16.48

Line Blanks figure-8 blind spectacle blank
